I've been lamenting poor transparency handling in opengl for as long as I've used opengl. From a graphics programmer's perspective, it's just so frustrating that you can't just:
glEnable(GL_ALPHA_BLEND_CORRECTLY);
Finally I've gotten around to implementing a correct solution. The idea is simple, and, by now, well-known. Render the scene k times. For each pass keep track of the color and depth of the fragment with the smallest depth value which is less than the previous pass's. In this way, each pass peels off a layer of pixels from front-to-back. Finally render all of these as composite image from back-to-front with the usual alpha blending.
If k is more than the maximum number of overlapping transparent objects then this will give the correct result. In practice if the alpha values aren't all tiny (everything's only a bit transparent). Then only a few passes are needed.
Here's a little 280-line glut app demonstrating this:
// make sure the modern opengl headers are included before any others
#include <OpenGL/gl3.h>
#define __gl_h_
#include <igl/frustum.h>
#include <igl/read_triangle_mesh.h>
#include <igl/opengl/create_shader_program.h>
#include <Eigen/Core>
#include <GLUT/glut.h>
#include <string>
void init_render_to_texture(
const size_t w, const size_t h, GLuint & tex, GLuint & dtex, GLuint & fbo)
{
const auto & gen_tex = [](GLuint & tex)
{
// http://www.opengl.org/wiki/Framebuffer_Object_Examples#Quick_example.2C_render_to_texture_.282D.29
glGenTextures(1, &tex);
glBindTexture(GL_TEXTURE_2D, tex);
glTexParameteri(GL_TEXTURE_2D, GL_TEXTURE_MIN_FILTER, GL_NEAREST);
glTexParameteri(GL_TEXTURE_2D, GL_TEXTURE_MAG_FILTER, GL_NEAREST);
};
// Generate texture for colors and attached to color component of framebuffer
gen_tex(tex);
glTexImage2D(GL_TEXTURE_2D, 0, GL_RGBA32F, w, h, 0, GL_BGRA, GL_FLOAT, NULL);
glBindTexture(GL_TEXTURE_2D, 0);
glGenFramebuffers(1, &fbo);
glBindFramebuffer(GL_FRAMEBUFFER, fbo);
// Generate texture for depth and attached to depth component of framebuffer
glFramebufferTexture2D(GL_FRAMEBUFFER, GL_COLOR_ATTACHMENT0, GL_TEXTURE_2D, tex, 0);
gen_tex(dtex);
glTexImage2D(GL_TEXTURE_2D, 0, GL_DEPTH_COMPONENT32, w, h, 0, GL_DEPTH_COMPONENT, GL_FLOAT, NULL);
glFramebufferTexture2D(GL_FRAMEBUFFER, GL_DEPTH_ATTACHMENT, GL_TEXTURE_2D, dtex, 0);
// Clean up
glBindFramebuffer(GL_FRAMEBUFFER, 0);
glBindTexture(GL_TEXTURE_2D,0);
}
// For rendering a full-viewport quad, set tex-coord from position
std::string tex_v_shader = R"(
#version 330 core
in vec3 position;
out vec2 tex_coord;
void main()
{
gl_Position = vec4(position,1.);
tex_coord = vec2(0.5*(position.x+1), 0.5*(position.y+1));
}
)";
// Render directly from color or depth texture
std::string tex_f_shader = R"(
#version 330 core
in vec2 tex_coord;
out vec4 color;
uniform sampler2D color_texture;
uniform sampler2D depth_texture;
uniform bool show_depth;
void main()
{
vec4 depth = texture(depth_texture,tex_coord);
// Mask out background which is set to 1
if(depth.r<1)
{
color = texture(color_texture,tex_coord);
if(show_depth)
{
// Depth of background seems to be set to exactly 1.
color.rgb = vec3(1,1,1)*(1.-depth.r)/0.006125;
}
}else
{
discard;
}
}
)";
// Pass-through vertex shader with projection and model matrices
std::string scene_v_shader = R"(
#version 330 core
uniform mat4 proj;
uniform mat4 model;
in vec3 position;
void main()
{
gl_Position = proj * model * vec4(position,1.);
}
)";
// Render if first pass or farther than closest frag on last pass
std::string scene_f_shader = R"(
#version 330 core
out vec4 color;
uniform bool first_pass;
uniform float width;
uniform float height;
uniform sampler2D depth_texture;
void main()
{
color = vec4(0.8,0.4,0.0,0.75);
color.rgb *= (1.-gl_FragCoord.z)/0.006125;
if(!first_pass)
{
vec2 tex_coord = vec2(float(gl_FragCoord.x)/width,float(gl_FragCoord.y)/height);
float max_depth = texture(depth_texture,tex_coord).r;
if(gl_FragCoord.z <= max_depth)
{
discard;
}
}
}
)";
// shader id, vertex array object
GLuint scene_p_id=0,tex_p_id;
GLuint VAO,QVAO;
// Number of passes
#define k 4
GLuint tex_id[k],dtex_id[k],fbo_id[k];
// full width/height of window, width/height of viewports
int full_w=1440,full_h=480,w=full_w/(k+2),h=full_h/1;
// Mesh data: RowMajor is important to directly use in OpenGL
typedef Eigen::Matrix< float,Eigen::Dynamic,3,Eigen::RowMajor> MatrixV;
typedef Eigen::Matrix<GLuint,Eigen::Dynamic,3,Eigen::RowMajor> MatrixF;
MatrixV V,QV;
MatrixF F,QF;
int main(int argc, char * argv[])
{
// Init glut and create window + OpenGL context
glutInit(&argc,argv);
glutInitDisplayMode(GLUT_3_2_CORE_PROFILE|GLUT_RGBA|GLUT_DOUBLE|GLUT_DEPTH);
glutInitWindowSize(full_w,full_h);
glutCreateWindow("test");
// Compile shaders
igl::opengl::create_shader_program(scene_v_shader,scene_f_shader,{},scene_p_id);
igl::opengl::create_shader_program(tex_v_shader,tex_f_shader,{},tex_p_id);
// Prepare VAOs
const auto & vao = [](const MatrixV & V, const MatrixF & F, GLuint & VAO)
{
// Generate and attach buffers to vertex array
glGenVertexArrays(1, &VAO);
GLuint VBO, EBO;
glGenBuffers(1, &VBO);
glGenBuffers(1, &EBO);
glBindVertexArray(VAO);
glBindBuffer(GL_ARRAY_BUFFER, VBO);
glBufferData(GL_ARRAY_BUFFER, sizeof(float)*V.size(), V.data(), GL_STATIC_DRAW);
glBindBuffer(GL_ELEMENT_ARRAY_BUFFER, EBO);
glBufferData(GL_ELEMENT_ARRAY_BUFFER, sizeof(GLuint)*F.size(), F.data(), GL_STATIC_DRAW);
glVertexAttribPointer(0, 3, GL_FLOAT, GL_FALSE, 3 * sizeof(GLfloat), (GLvoid*)0);
glEnableVertexAttribArray(0);
glBindBuffer(GL_ARRAY_BUFFER, 0);
glBindVertexArray(0);
};
// Read input mesh from file
igl::read_triangle_mesh(argv[1],V,F);
V.rowwise() -= V.colwise().mean();
V /= (V.colwise().maxCoeff()-V.colwise().minCoeff()).maxCoeff();
vao(V,F,VAO);
// square
const MatrixV QV = (MatrixV(4,3)<<-1,-1,0,1,-1,0,1,1,0,-1,1,0).finished();
const MatrixF QF = (MatrixF(2,3)<< 0,1,2, 0,2,3).finished();
vao(QV,QF,QVAO);
// Main display routine
glutDisplayFunc(
[]()
{
// Projection and modelview matrices
Eigen::Matrix4f proj = Eigen::Matrix4f::Identity();
float near = 0.01;
float far = 3;
float top = tan(35./360.*M_PI)*near;
float right = top * (double)w/(double)h;
igl::frustum(-right,right,-top,top,near,far,proj);
Eigen::Affine3f model = Eigen::Affine3f::Identity();
model.translate(Eigen::Vector3f(0,0,-1.5));
// spin around
static size_t count = 0;
model.rotate(Eigen::AngleAxisf(M_PI/180.*count++,Eigen::Vector3f(0,1,0)));
glEnable(GL_DEPTH_TEST);
glViewport(0,0,w,h);
// select program and attach uniforms
glUseProgram(scene_p_id);
GLint proj_loc = glGetUniformLocation(scene_p_id,"proj");
glUniformMatrix4fv(proj_loc,1,GL_FALSE,proj.data());
GLint model_loc = glGetUniformLocation(scene_p_id,"model");
glUniformMatrix4fv(model_loc,1,GL_FALSE,model.matrix().data());
glUniform1f(glGetUniformLocation(scene_p_id,"width"),w);
glUniform1f(glGetUniformLocation(scene_p_id,"height"),h);
glBindVertexArray(VAO);
glDisable(GL_BLEND);
for(int pass = 0;pass<k;pass++)
{
const bool first_pass = pass == 0;
glUniform1i(glGetUniformLocation(scene_p_id,"first_pass"),first_pass);
if(!first_pass)
{
glUniform1i(glGetUniformLocation(scene_p_id,"depth_texture"),0);
glActiveTexture(GL_TEXTURE0 + 0);
glBindTexture(GL_TEXTURE_2D, dtex_id[pass-1]);
}
glBindFramebuffer(GL_FRAMEBUFFER, fbo_id[pass]);
glClearColor(0.0,0.4,0.7,0.);
glClear(GL_COLOR_BUFFER_BIT | GL_DEPTH_BUFFER_BIT);
glDrawElements(GL_TRIANGLES, F.size(), GL_UNSIGNED_INT, 0);
}
// clean up and set to render to screen
glBindVertexArray(0);
glBindFramebuffer(GL_FRAMEBUFFER, 0);
glActiveTexture(GL_TEXTURE0 + 0);
glBindTexture(GL_TEXTURE_2D,0);
// Get read to draw quads
glBindVertexArray(QVAO);
glClearColor(0.0,0.4,0.7,0.);
glClear(GL_COLOR_BUFFER_BIT | GL_DEPTH_BUFFER_BIT);
glUseProgram(tex_p_id);
// Draw result of each peel
for(int pass = 0;pass<k;pass++)
{
GLint color_tex_loc = glGetUniformLocation(tex_p_id,"color_texture");
glUniform1i(color_tex_loc, 0);
glActiveTexture(GL_TEXTURE0 + 0);
glBindTexture(GL_TEXTURE_2D, tex_id[pass]);
GLint depth_tex_loc = glGetUniformLocation(tex_p_id,"depth_texture");
glUniform1i(depth_tex_loc, 1);
glActiveTexture(GL_TEXTURE0 + 1);
glBindTexture(GL_TEXTURE_2D, dtex_id[pass]);
glViewport(pass*w,0*h,w,h);
glUniform1i(glGetUniformLocation(tex_p_id,"show_depth"),0);
glDrawElements(GL_TRIANGLES,6, GL_UNSIGNED_INT, 0);
}
// Render final result as composite of all textures
glBlendFunc(GL_SRC_ALPHA, GL_ONE_MINUS_SRC_ALPHA);
glEnable(GL_BLEND);
glDepthFunc(GL_ALWAYS);
glViewport(k*w,0*h,w,h);
glUniform1i(glGetUniformLocation(tex_p_id,"show_depth"),0);
GLint color_tex_loc = glGetUniformLocation(tex_p_id,"color_texture");
GLint depth_tex_loc = glGetUniformLocation(tex_p_id,"depth_texture");
for(int pass = k-1;pass>=0;pass--)
{
glUniform1i(color_tex_loc, 0);
glActiveTexture(GL_TEXTURE0 + 0);
glBindTexture(GL_TEXTURE_2D, tex_id[pass]);
glUniform1i(depth_tex_loc, 1);
glActiveTexture(GL_TEXTURE0 + 1);
glBindTexture(GL_TEXTURE_2D, dtex_id[pass]);
glDrawElements(GL_TRIANGLES,6, GL_UNSIGNED_INT, 0);
}
glDepthFunc(GL_LESS);
// Render scene using naive GL_BLEND transparency
glUseProgram(scene_p_id);
glBindVertexArray(VAO);
glViewport((k+1)*w,0*h,w,h);
glDrawElements(GL_TRIANGLES, F.size(), GL_UNSIGNED_INT, 0);
glBindVertexArray(0);
glDisable(GL_BLEND);
glutSwapBuffers();
glutPostRedisplay();
}
);
glutReshapeFunc(
[](int w,int h)
{
full_h=h;
full_w=w;
::w=full_w/(k+2);
::h=full_h/(1);
// (re)-initialize textures and buffers
for(size_t i = 0;i<k;i++)
{
init_render_to_texture(::w,::h,tex_id[i],dtex_id[i],fbo_id[i]);
}
});
glutMainLoop();
}

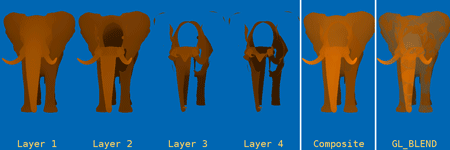

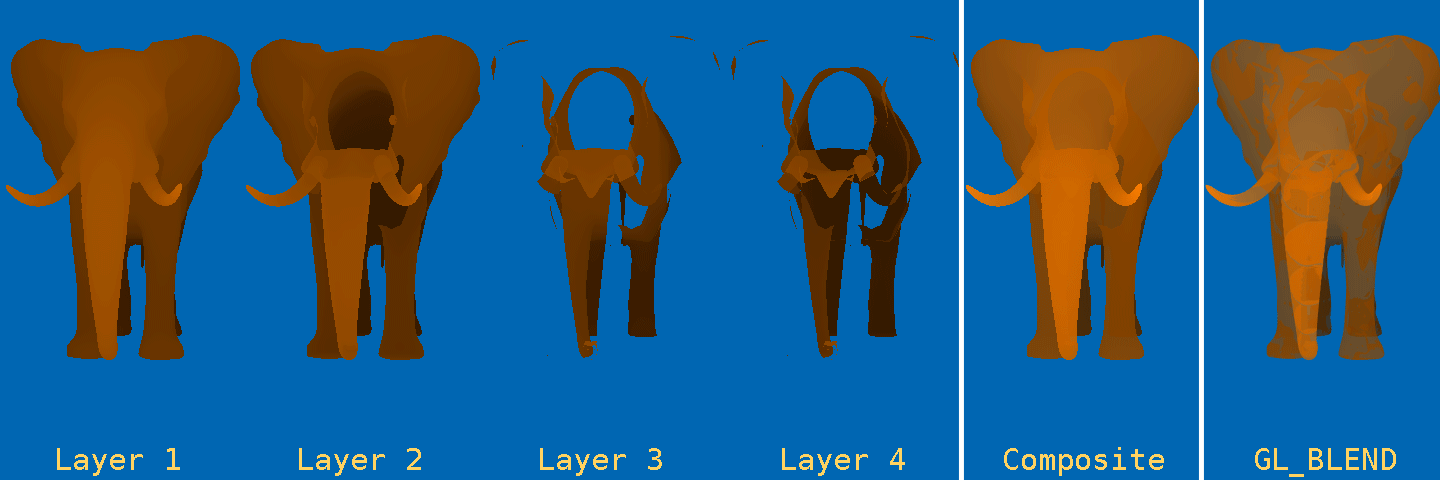

Running this for an elephant mesh you get:
The left 4 images are the individual peeled layers, rendered only for demonstration. The next image is the composite (the main result) and for comparison the nasty mess you get if you just try to render your scene with:
glBlendFunc(GL_SRC, GL_ONE_MINUS_SRC_ALPHA);
glEnable(GL_BLEND);
**Update: ** Turns out to get the right blending you should be careful to turn off GL_BLEND when doing the peeling pass and only turn it on for the texture compositing.
