Matcap rendering in libigl mini-example

Alec Jacobson

April 14, 2019

weblog/

Playing around with a common shader trick called "material capture" or matcaps. These are essentially spherical environment maps packed into an image of a sphere. The idea is beautifully simple: for each fragment use the normal to look up the corresponding color on the image of the sphere. The results can be quite stunning and realistic. Here's a little libigl viewer that loads a mesh and a metcap image as a .png:

#include <igl/read_triangle_mesh.h>
#include <igl/png/readPNG.h>
#include <igl/opengl/glfw/Viewer.h>
#include <igl/opengl/create_shader_program.h>
#include <igl/opengl/destroy_shader_program.h>
#include <Eigen/Core>

int main(int argc, char *argv[])
{
  using namespace Eigen;
  using namespace std;
  Eigen::MatrixXd V;
  Eigen::MatrixXi F;
  igl::opengl::glfw::Viewer v;
  igl::read_triangle_mesh(argv[1], V, F);
  Eigen::Matrix<unsigned char,Eigen::Dynamic,Eigen::Dynamic> R,G,B,A;
  igl::png::readPNG(argv[2],R,G,B,A);

  v.data().set_mesh(V,F);
  v.data().set_texture(R,G,B,A);
  v.data().set_face_based(false);
  v.data().show_lines = false;
  v.data().show_texture = true;
  v.launch_init(true,false);

  v.data().meshgl.init();
  igl::opengl::destroy_shader_program(v.data().meshgl.shader_mesh);

  {
    std::string mesh_vertex_shader_string =
R"(#version 150
uniform mat4 view;
uniform mat4 proj;
uniform mat4 normal_matrix;
in vec3 position;
in vec3 normal;
out vec3 normal_eye;

void main()
{
  normal_eye = normalize(vec3 (normal_matrix * vec4 (normal, 0.0)));
  gl_Position = proj * view * vec4(position, 1.0);
})";

    std::string mesh_fragment_shader_string =
R"(#version 150
in vec3 normal_eye;
out vec4 outColor;
uniform sampler2D tex;
void main()
{
  vec2 uv = normalize(normal_eye).xy * 0.5 + 0.5;
  outColor = texture(tex, uv);
})";

    igl::opengl::create_shader_program(
      mesh_vertex_shader_string,
      mesh_fragment_shader_string,
      {},
      v.data().meshgl.shader_mesh);
  }

  v.launch_rendering(true);
  v.launch_shut();
}

Suppose you have this matcap image:

source

Then you can issue something like:

./matcap cartoon-elephant.ply skin.png

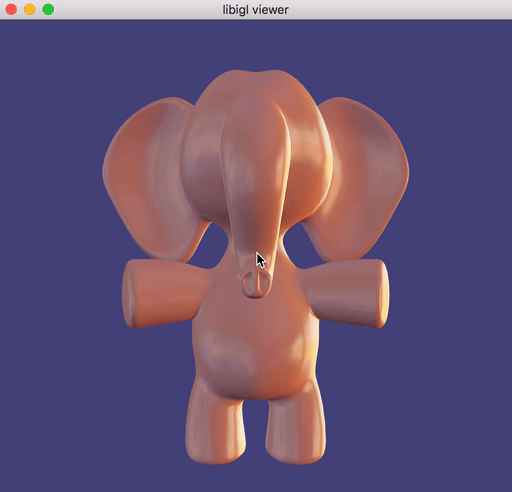

And produce this naked looking cartoon elephant:

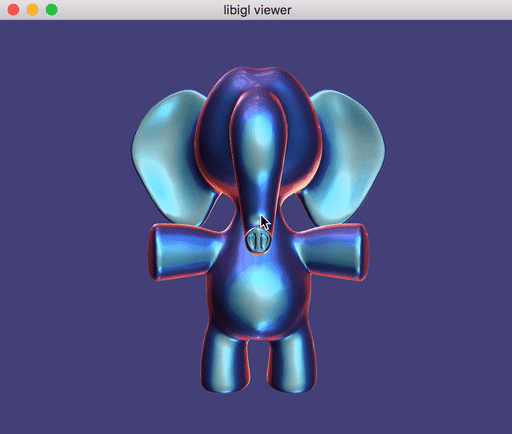

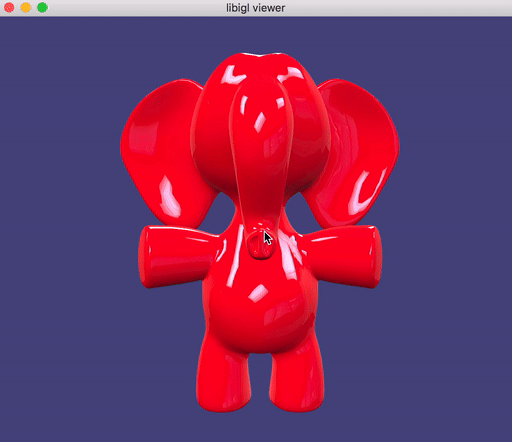

Here're a couple examples. Super fun to just swap in example images from the internet without having to change the shader code:

And just playing around, I used the default phong render of libigl of a sphere:

And then applied a few photoshop filters to create a stylized version:

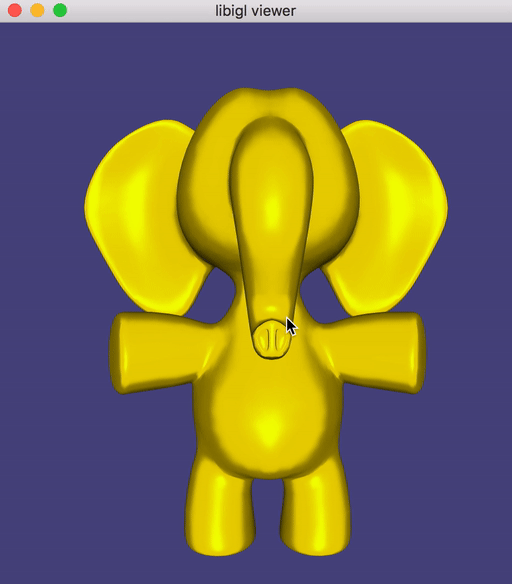

which produces this matcap rendering of the elephant
